Geekvape Z50 Box Mod Kit

Name: Geekvape Z50 Box Mod Kit
Brand: Geekvape

Brand · Geekvape → Indexed · Jan 2022

Max output 38W

Battery 2000mAh

Capacity 3.5mL

Coil 3.0Ω

Gallery

Available Colors

Black Gunmetal Rainbow Silver

Key features

Kit Size: 84.1 x 30.7mm
Tank capacity: 3.5ml
Output Voltage: 0.5V~7.0V
Support Resistance Range: 0.1～3.0ohm
Coil: Pre-installed: 0.3ohm 30~38W, Spare coil: 0.6ohm 15-25W
Battery Capacity: 2000mAh

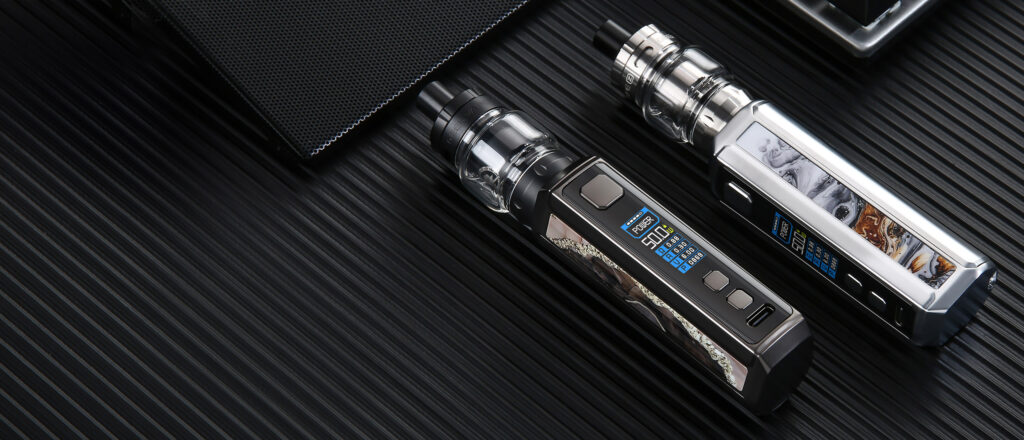

The Geekvape Z50 box mod kit is built around an Ancient Greek aesthetic based on the golden ratio. The maker describes the design as a combination of power and art in a small package. No output or battery specs are listed on the page.

In this record

01Full specifications

E-liquid Capacity: 3.5ml
Battery Capacity: 2000mAh
Output Power: 38W
Charging Port: 5V/2A
Coil Resistance: 3.0ohm
Dimensions: 84.1×30.7×24.0mm
Kit Size: 84.1 x 30.7mm
Tank capacity: 3.5ml
Output Voltage: 0.5V~7.0V
Support Resistance Range: 0.1～3.0ohm
Coil: Pre-installed: 0.3ohm 30~38W, Spare coil: 0.6ohm 15-25W
Charging Specification: 5V/2A
Low voltage Warning: 3.2V±0.1V
PCBA Temperature Alarm: 80℃
Longest vaping Time: 10s
Stand-by Current: 10uA
Operating Temperature: 0 ℃~ 45℃
storage Temperature: - 20 ℃ ~60 ℃
Cooling Mode: Natural Cooling
Tank Size: 22mm x 56.55mm
Package Size: Length:81mm, Width:81mm, Height: 135mm

02Kit contents

1 x Mod
1 x Coil Tool
1 x Atomizer (3.5ml)
1 x USB Cable
2 x Geekvape B Series Coils (Pre-installed: 0.3ohm 30~38W, Spare coil: 0.6ohm 15-25W)
1 x Spare Parts Pack
1 x Spare Glass Tube (2ml)
